Pengfei Group of China supply Pengfei brand rotary kiln (titanium pigment kiln, sintering furnace, industrial furnace, kiln, acid pellet) .
Jiangsu Pengfei Group Co., Ltd. whose specifications are F3.2�52m,F3.5�54m,dia.4.0�60m,d4.3�64m,F4.8�74m and F5.0�78m and used for 8000t/d, 5000t/d and 2500t/d new dry basis complete rotary kiln equipments. Pengfei brand rotary kiln is the main equipment for calcining cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc. It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily.
Through the technical renovations, the rotary kiln calcining system equipment made by Pengfei has adopted the advanced hydraulic thrust roller device, the high measuring precession plunger pump, the variable speed adjusted valve, the contact graphite block sealing device and the other national advanced technologies. In order to raise up automation degree, the industrial TV has been used at the kiln head for monitoring of kiln, the simulation phosphor screen has been used for display of process flow; the infrared scanning system has been adopted for calcining zone to directly reflect the burning conditions on the computer. With the use of these new of these new technologies, it is direct in vision, convenient in operation and reliable in use. Therefore, the thermal condition can be stabilized and the running rate of equipment can be raised. Compared to same sized equipment, its running rate has been raised 10% up, production has been increased 5-10% and heat consumption has been reduced 15% down.

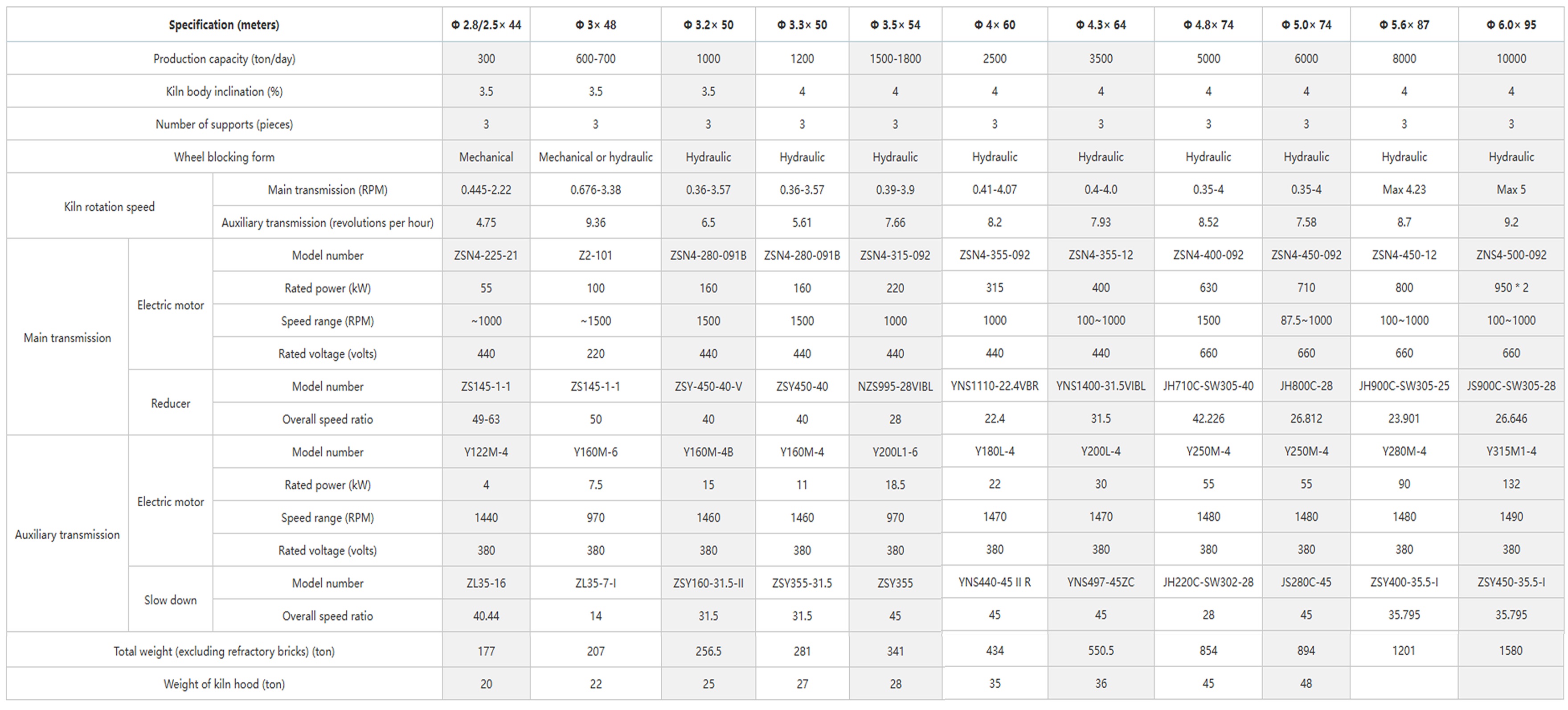

Technical parameter
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
